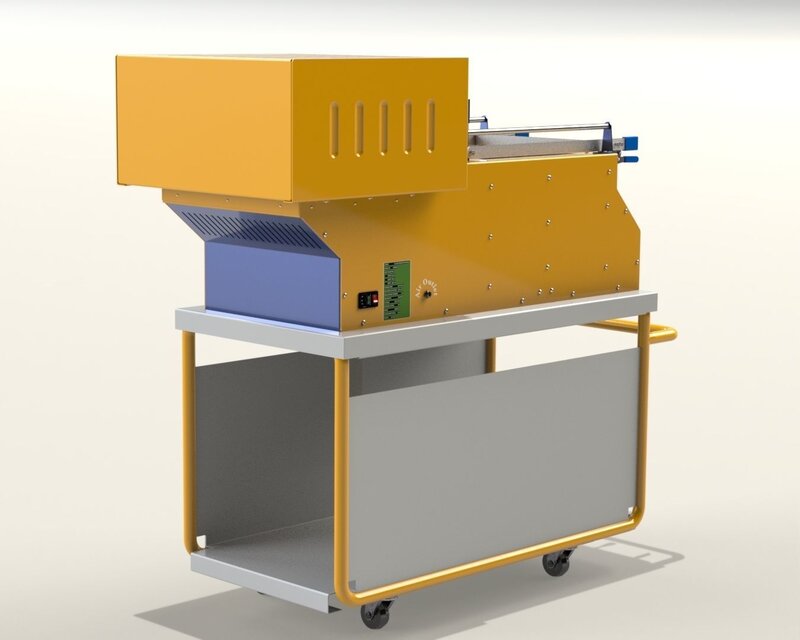

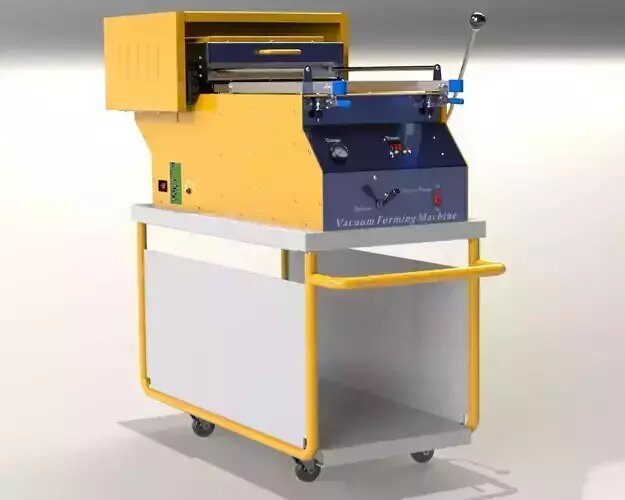

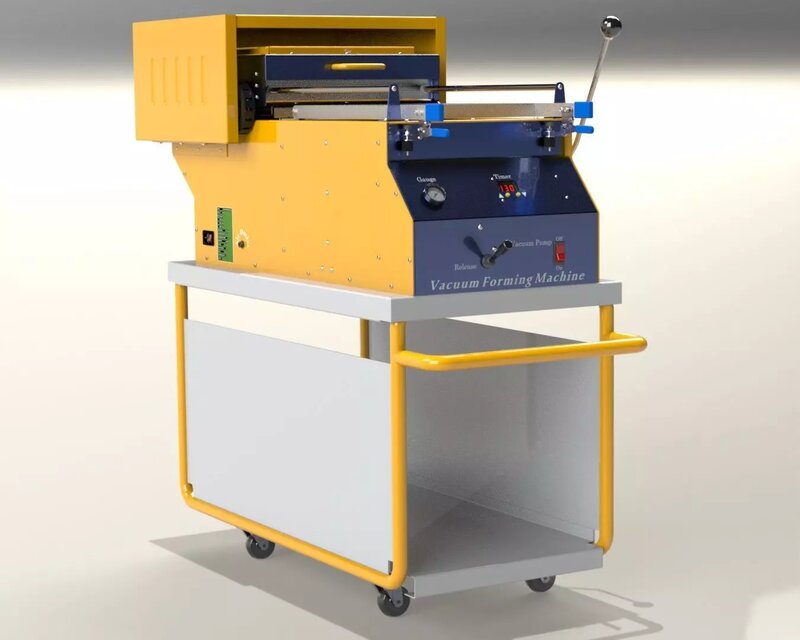

Vacuum Forming Machine 3D model
This is detailed design of the vacuum forming machine, including all parts which you need to manufacture a thermoplastic machine.Vacuum forming is a simplified version of thermoforming, where a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum. This process can be used to form plastic into permanent objects such as turnpike signs and protective covers. The most body of the machine is sheet metal.
This is detailed design of the vacuum forming machine, including all parts which you need to manufacture a thermoplastic machine.Vacuum forming is a simplified version of thermoforming, where a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum. This process can be used to form plastic into permanent objects such as turnpike signs and protective covers. The most body of the machine is sheet metal.
3D Model formats
Format limitations
- IGES (.ige, .igs, .iges) (2 files)115 MBVersion: 2018Version: 2018
- Other 233 MB
- STEP 2018 (.stp)59.2 MB
- Stereolithography 2018 (.stl)296 MB
- VRML (.wrl)102 MB
- OBJ (.obj, .mtl)99 Bytes
- Ply (.ply)32.4 MB
- Blender (.blend)378 MB
